INDUSTRIAL LAMINATION LINES
CRACKER AND HARD BISCUIT
The hard biscuit is one of the first examples of packaged bakery products that can be remembered. The same etymology of the word biscuit comes from the Latin “bis coctus” which means cooked twice, to indicate a dry product, suitable to be preserved for a long time. Sailors’ biscuits were the first example of printed biscuits and in some areas the laminated biscuit is also called “biscuit de mer”. These products have a fairly well-aerated structure with a rather low specific weight: therefore they are well suited to being soaked in hot drinks.
They are fairly crunchy biscuits, just hard on the first bite and then crumbly on the palate, leaving the typical vanilla flavor in the mouth. Within the family of dry biscuits we find the typical French “Marie” and the “Petit Beurre” , the English “Oswego”, “gem biscuits” and “cabin”, but also the families of “cream crackers”, the “soda crackers “,” snack crackers“ and ”water crackers“. The main ingredient of this family of products is flour and its types, since the dry product is mainly
composed of flour and water, with a modest amount of sugar and fat.
In any type of laminated biscuit there are the following process phases: the preparation of the dough, its fermentation or stasis (in the case of some crackers or semi-hard biscuits), the formation of the dough, its sheeting (in the case of some recipes), the reduction of the thickness of the final sheet and subsequent cutting, baking and cooling before packaging. Laser provides an integrated solution of the whole process from the beginning to the end with the experience of more than 500 lines installed in the world in the last 20 years. This allows to obtain an optimal result, constant over time and efficient in all steps.
EXAMPLE OF HARD BISCUIT LINES
MIXER
DOUGH FEEDING
LAMINATION LINE
TUNNEL OVEN
COOLING CONVEYOR
HANDLING AND PACKING
Mixers manufactured every year
The dough is the first phase of the process and one of the most critical:
great importance is given to the homogeneity of the dough and its characteristics. How the ingredients are dosed, blended and incorporated, producing the correct amount of gluten during mixing and developing the correct temperature is essential to have a constant and machinable product in the subsequent phases. Laser can count on different types of mixers produced internally through years of experience gained in contact with its customers all over the world. More info
feeding solutions: direct feeding, intermediate short rest, long fermentation on bowls
once the dough is created it must be transferred to the lamination line.
It could be a direct process, with resting period of a few minutes, or require a fermentation of several hours. The mixing room could be near the process area, or on a separate floor. in any case Laser has various technical solutions to automate this phase. Often the dough is also checked to avoid the presence of contaminating materials that could damage the following stations.
LAMINATION SECTION

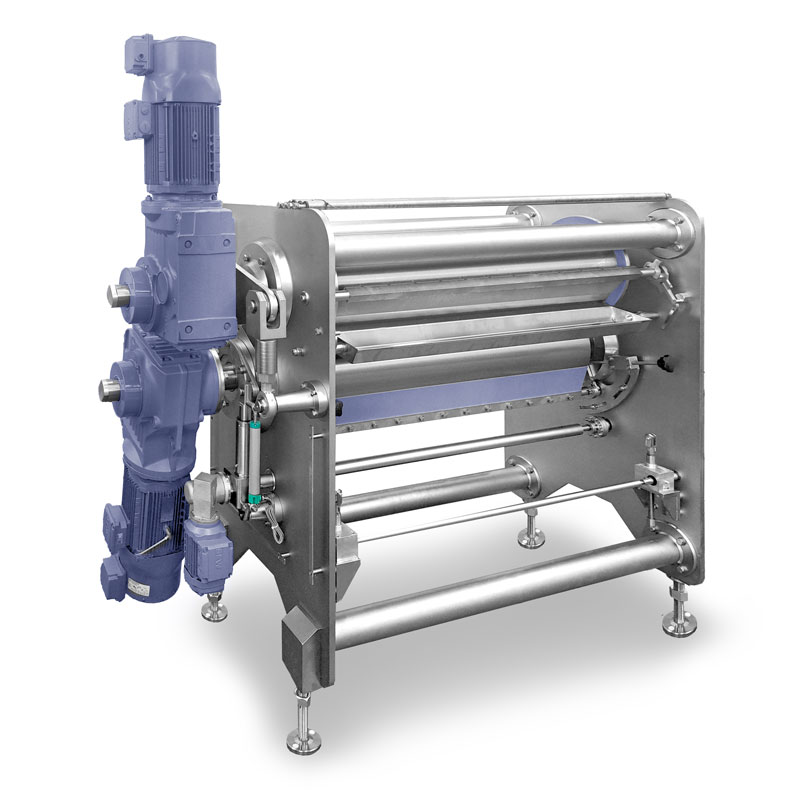

THREE INDEPENDENT LAMINATING ROLLERS ROLL THE DOUGH TO THE DESIRED THICKNESS.
Once rolled, the dough is formed into the desired biscuit mould. The biscuits can then be decorated with sugar, seeds or icing before entering the baking stage. All this is done automatically and without the need for direct operator intervention.
AND MORE solution for customizing the final product
Each production line can be customized with various accessories:
to make the final product unique or make the same line more flexible and able to respond to market demands. It is possible to insert more dough sheeters, for two-colored or “Sultana” type products, as well as rotary moulding machines to also produce shortbread biscuits. Distribution systems for granulates, wetting and glazing can be easily integrated into the layout of the line to ensure that each product is unique in the market.
production lines installed every year
The lamination phase is the heart of the creation of the biscuit:
from a coarse sheet created by a 3 or 4-roll extruder, a continuous sheet of dough, even a few tenths of a millimeter, is obtained through continuous calibration. It is here that the weight of the biscuit is decided and very high precision is indispensable in order to obtain constant and equal products. Sophisticated electronic control systems analyze and correct the density of the dough to form the sheet, and then automatically adjust the speed of gauge rolls and the belts. The energy transferred from the lamination to the dough generates a further formation of gluten and this allows the dough to remain elastic until the end of the process.
LASER BISCUIT LINES
TAKE YOUR PRODUCTION TO THE NEXT LEVEL
Our experience in the sector with over 500 plants commissioned, combined with the high production of machines, allows us to offer a personalized choice of solutions for each customer.
The Laser production program includes complete automatic process lines with a high productivity yield for biscuits, pastry and breads, designed and manufactured with the use of innovative technologies and excellent materials.
dough sheets on cracker productION
Crackers are a particular family of laminated biscuits:
Essentially salty, they have a much more aerated structure than the classic dry biscuits and have a longer and more complex fermentation phase (except in some cases). It is also necessary to laminate the dough to make the product fragrant and crunchy and this operation must be carried out with meticulous precision: A badly laid or non-constant sheet will give a remarkable change of dimension after the baking process, most of the times resulting in unpackable product.
Cracker baking temperature is also much higher as they need to generate internal chemical reactions to create the classic bubbles and their aerated structure. Precisely for this reason Laser has developed a series of innovations suitable for the standardization of these processes to obtain constant products, perfect in every situation.
km of cooling conveyors manufactured every year
Once baking is over, the biscuit must be cooled and transported to the packaging “islands”.
Maintaining a constant alignment and non-aggressive cooling are essential for obtaining a whole product that does not break, can be easily stacked and packaged. Nobody wants a package of crumbs! More than 3,500 meters of cooling conveyors are carried out each year, transporting each cookie to stacking stations. Subsequently, the biscuit can be conveyed to the packaging machines automatically or manually depending on the system and the speeds. There could be several packaging “islands”, or several production lines, in this case an integrated system allows a production flexibility necessary for the modern industry.
different TYPE OF TUNNEL OVEN
The oven is the master of reference for the entire line and determines its production capacity.
Proper baking and correct profiling of the parameters of each zone is the secret to obtain a constant and efficient production. Whether the oven is powered by gas, diesel or electric, which it bakes by radiation or convection, Laser has a solution for every need. Different types of baking and fuel can be combined to give an optimal and at the same time flexible result for
modern industry. More info
recipes stored in our software management system
The entire system is managed completely automatically by one or more PLCs.
The software allows to manage the recipe and production parameters and also be connected to the customer’s company networks if necessary. Extensive customization and on-line assistance give the customer a support according to his production needs.
